Grinding Machines
|
We can build these grinders to accept springs 22-24 inches in length
|
Spring Grinder Machines
| Model No. |
Wire Diameter |
Maximum Length |
Maximum External Diameter |
Motor |
Grinder Size |
Volume |
Weight |
Packing Measurement |
| C-101 |
1.0m/m-5m/m |
7m/m-280m/m |
3m/m-50m/m |
8½HP |
12"×4pcs |
48"×43"×95" |
1500kgs |
53"×48"×104" |
| C-101A |
1.0m/m-7m/m |
10m/m-280m/m |
3m/m-70m/m |
12½HP |
16"×4pcs |
54"×47"×98" |
1700kgs |
60"×52"×107" |

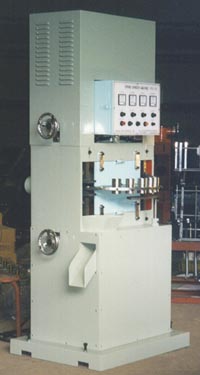

C-101A
With Guard |

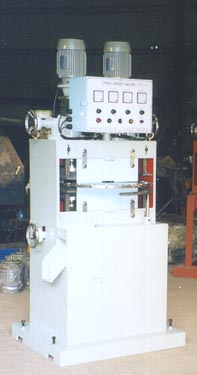

C-101A
Without Guard |

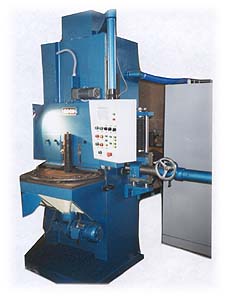

MW-400/9 18" Stones
Full computer control
Three ways of operation
Automatic grinding
Automatic pressure adjust
Automatic wheel wera comp.
Foldable stand
Mitsubishi controls
Machine Specs
| Wire | 1-9 mm |
| Max O.D. of Spring | 100 mm |
| Height of Spring | 20 - 400 mm |
| Grinding Wheel | 450 * 60 mm |
| Feeding Table | 720 mm |
| Power | 15 Kw |
|
 |
|
|
